Summary of flying objects

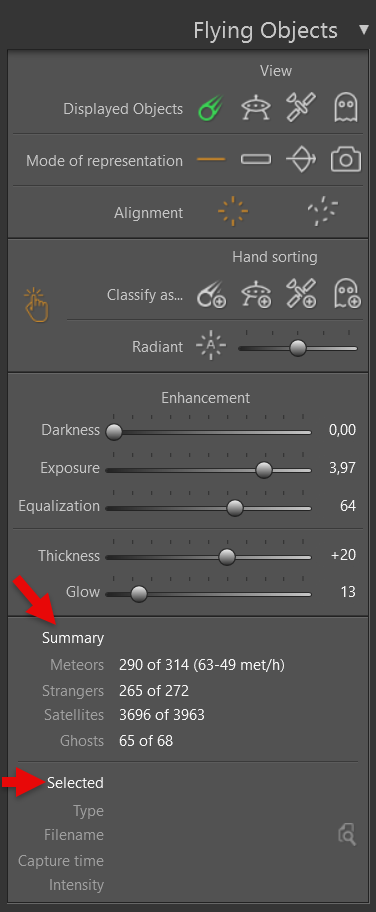

At the bottom of the "Flying Objects" module there is a section where you can find a summary of all detected flying objects (by categories) and, in addition, the information of the last selected flying object (in case you have selected one).
Summary

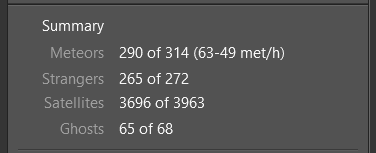

This section shows the summary information of all detected meteors by category.
As you can see in the image above, for each type of flying object two numbers ("X of Y") are shown, being:
- X: Indicates the number of flying objects within the image for the selected time of night.
- Y: Indicates the total number of flying objects.
The fact that there are two different numbers is due to the alignment mode of the flying objects according to the sky, since, with this mode the flying objects are aligned according to the sky, which may cause objects to be left out of the image depending on the time of the night you have selected. Therefore, the value of the first number (X) will always be less than or equal to the value of the second number (Y), which is the total number.
And in case you have selected the alignment mode according to the image, both numbers are equal, since the flying objects are all inside the image (in the position where they were captured).
On the other hand, for the meteors, the rate of captured meteors per hour ("S-T met/h") is also shown (in parentheses). In this case the difference between both numbers is:
- S: Indicates the hourly meteor rate at the selected time of night (for the current base image).
- T: Indicates the rate of meteors per hour averaged over the total capture time.
Therefore, the value of "S" can be used to check at what time of the night there was a higher rate of meteors.
Selection

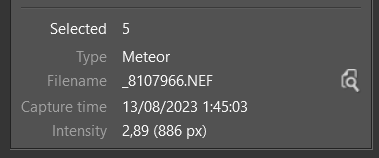

This section displays the specific information of the last flying object that was manually selected with the mouse.
The information in this section is:
- Selected: Displays the number of flying objects currently selected.
- Tyoe: Indicates the type of the selected flying object (meteor, stranger, satellite/plane or ghost).
- Filename: Displays the name of the image in which the selected flying object was captured. And to the right of the name is the image review button (which when pressed displays that image on the display so that a visual review of the flying object can be made).
- Capture time: Indicates the time instant at which the selected flying object was captured.
- Intensity: Displays the intensity value (in stops) of the selected flying object relative to the sky background. Also, the length in pixels of that flying object is shown in parentheses.
IMPORTANT: In this section only the information of the last selected flying object is displayed, so to review a previously selected object you have to uncheck it and check it again to make it the last selected flying object.
